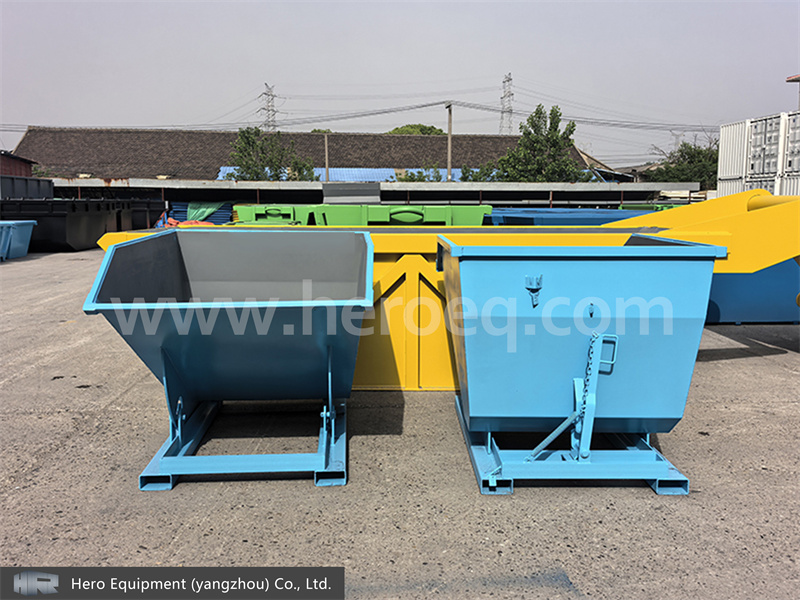

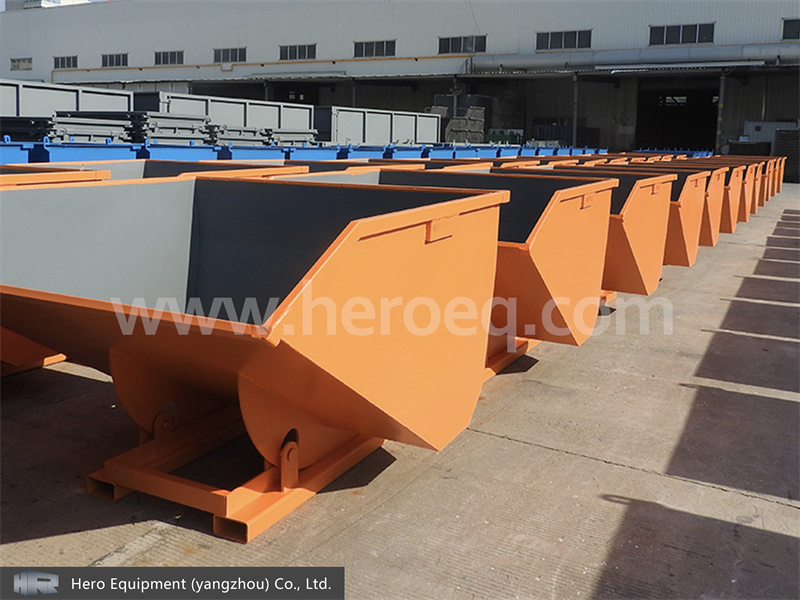

Tipping bins are robust containers designed for the repeated transfer of bulk materials by tilting or lifting their entire body to discharge contents. Found in agriculture, construction, waste management, mining, and manufacturing, these bins endure relentless cycles of loading, transport, and unloading. Each tipping motion imposes dynamic stresses—impact from dumped loads, torsional strains from uneven weight distribution, and fatigue from repeated lifting and lowering. To remain functional and safe over extended service lives, tipping bins must embody a suite of engineering features that collectively resist deformation, fatigue, and wear. Understanding these features reveals how manufacturers transform a seemingly simple container into a reliable workhorse capable of withstanding thousands of operational cycles.
1. Reinforced Structural Framework
At the core of a durable tipping bin lies a rigid structural framework that maintains geometric stability under load. Unlike static storage containers, tipping bins experience significant flexural and torsional forces during the tipping motion, especially when partially filled or when the load shifts unpredictably. High-strength frameworks are achieved through the use of heavy-gauge steel sections for sidewalls, floor panels, and corner assemblies. Hat-shaped or corrugated profiles increase bending resistance without excessive weight. Interconnected cross braces and diagonal gussets tie the vertical and horizontal members into a cohesive unit, preventing racking and local buckling. This framework distributes forces broadly, ensuring that no single area bears disproportionate stress that could initiate fatigue cracks or permanent deformation.
2. Engineered Floor and Support Rails
The floor of a tipping bin must absorb point impacts from falling materials and support shifting loads during transport and tipping. Durable bins employ continuous longitudinal support rails—typically formed I‑beams or thick channel sections—welded beneath the floor sheet. These rails create a network that transfers load to the sidewalls and base frame. Close spacing of rails prevents sagging and puncture, while their high section modulus resists bending moments induced by uneven filling. Transverse floor beams may tie the longitudinal supports together, forming a torsionally stiff platform. In some designs, wear-resistant plates are welded in high-impact zones to extend floor life. This robust flooring system ensures the bin retains its shape and load-bearing capacity cycle after cycle.
3. Strengthened Corner and Lifting Points
Lifting and tipping actions concentrate forces at specific points—corner posts, lifting lugs, and hinge mechanisms. These areas are prime candidates for fatigue failure if not properly reinforced. Durable tipping bins use thickened corner posts, often with internal gussets or boxed construction, to resist crushing and bending. Lifting lugs are forged or machined from high-strength steel and welded with generous reinforcement plates to spread load into adjacent structure. The geometry of lugs avoids sharp re‑entrant corners that concentrate stress. Hinges for bottom‑pivot tipping designs are mounted on reinforced mounting pads with bushings or bearings to reduce friction and wear. By fortifying these critical nodes, the bin withstands the high local stresses of mechanical handling without progressive distortion.
4. Continuous Welds and Seam Integrity
The fatigue life of a tipping bin is heavily influenced by the quality of its joints. Intermittent or weak welds act as crack initiation sites under cyclic loading. High‑durability bins employ continuous, full‑penetration welds along major seams—floor to rails, sidewalls to top rails, and corner assemblies. Welds are dressed to remove notches and checked for porosity or undercut. In inaccessible areas, plug welds supplement the joint. Staggered seam placement prevents straight‑line weaknesses that could propagate under stress. This comprehensive welding approach ensures force transfer occurs smoothly across the structure, minimizing stress concentrations that would otherwise shorten service life.
5. Impact‑Resistant Sidewall and Body Panels
Sidewalls face repeated impacts from falling debris, tools, or shifting loads. To resist denting and perforation, durable bins use formed steel panels with integral ribs or corrugations. These features increase panel stiffness, raising the energy required to cause permanent deformation. Some designs incorporate inner and outer skins with perforated or ribbed cores, creating a lightweight sandwich structure that absorbs impact energy. Wear strips or replaceable liner plates may be fitted in high‑contact areas to shield the main structure. These measures preserve the bin’s geometry and prevent crack initiation from localized damage.
6. Balanced Mass Distribution and Center of Gravity Control
Frequent tipping motions exert twisting forces on the bin as the center of gravity moves. A poorly balanced bin experiences uneven loading on its structure and lifting mechanisms, accelerating fatigue. Durable designs position the bin’s center of gravity to remain within a stable zone during both upright and tilted positions. This may involve optimizing wall height, floor slope, and reinforcement placement. Some bins include internal baffles or bulkheads to control material movement and reduce sloshing forces during transport. Controlled mass distribution minimizes undesirable torques that would otherwise strain hinges, lugs, and sidewalls.
7. Protective Coatings and Corrosion Resistance
Repeated loading cycles often coincide with exposure to moisture, chemicals, and abrasive particles that promote corrosion. Rust not only weakens the metal but also creates pits that act as stress concentrators, hastening fatigue failure. Durable tipping bins receive thorough surface preparation—abrasive blasting to near‑white metal—followed by corrosion‑resistant coatings. Zinc‑rich primers provide sacrificial protection, while epoxy or polyurethane topcoats offer barrier and UV resistance. Powder coatings deliver a thick, uniform film with excellent adhesion and toughness. These protective systems preserve the substrate, maintaining structural strength and appearance over many cycles.
8. Durable Hinge and Locking Mechanisms
In bins designed for bottom‑pivot tipping, hinges undergo thousands of rotations, facing both compressive and shear forces. Durable hinges use heavy‑duty pins supported by reinforced brackets, often with grease fittings for lubrication and wear monitoring. Bushings or roller bearings reduce friction and prevent galling. Locking mechanisms—latches, hooks, or automatic restraints—are constructed from high‑strength materials and designed for high cycle life. Positive engagement features ensure the bin remains securely closed during transport and tips predictably without unintended release. Reliable hinge and latch systems prevent catastrophic failure at the interface between bin and transport vehicle or tipper mechanism.
9. Replaceable Wear Components and Modular Design
Recognizing that some regions will experience higher wear, manufacturers equip durable tipping bins with replaceable wear plates, liners, and hardware. This modular approach localizes damage and allows quick restoration without replacing the entire bin. For example, a worn floor plate can be unbolted and replaced, preserving the structural frame. Removable panels facilitate access for inspection and repair of internal reinforcements. Modularity reduces downtime and extends the bin’s economic life by addressing wear proactively.
10. Material Selection for Strength and Toughness
The base material significantly influences fatigue and impact resistance. High‑strength low‑alloy steels offer superior yield and tensile strength with good toughness, allowing thinner sections without sacrificing load capacity. In extremely abrasive environments, abrasion‑resistant steels may be used for floor and sidewall panels. Aluminum alloys provide weight savings with reasonable strength but require careful design to compensate for lower stiffness. Material choice is matched to expected load magnitudes, impact energies, and environmental exposure, ensuring the bin can endure the mechanical demands of frequent cycles.
11. Design for Dynamic Load Paths
Engineers analyze the complete tipping sequence to identify how inertial and gravitational forces travel through the structure. By reinforcing these dynamic load paths—such as the route from lifting lugs through corner posts to floor rails—designers ensure forces are carried efficiently to the strongest members. This holistic approach prevents unexpected stress risers and ensures predictable performance under real‑world conditions. Finite element analysis and physical testing validate that the bin can tolerate thousands of cycles without cumulative damage.
12. Ergonomic and Operational Safeguards
While not directly structural, features that promote correct operation indirectly protect durability. Clear fill level indicators prevent overfilling, which can cause spillage and uneven loading during tipping. Stable base designs reduce the risk of tipping accidents that impose shock loads beyond normal cycles. Guided discharge chutes align with receiving equipment, minimizing impact on the bin’s discharge area. These operational safeguards help maintain the intended loading and unloading patterns, preserving structural integrity over time.
The ability of tipping bins to withstand frequent loading and unloading cycles stems from a convergence of thoughtful structural design, material science, and protective strategies. Reinforced frameworks, engineered floors, strengthened lifting points, and continuous welds form a resilient skeleton. Impact‑resistant panels, balanced mass distribution, and durable hinges manage dynamic forces. Protective coatings guard against corrosion, while replaceable components and modular construction extend service life. Careful material selection and analysis of load paths ensure the bin meets the mechanical challenges of repetitive use. Together, these features transform a tipping bin from a simple container into a long‑lasting, reliable asset capable of performing consistently in the toughest industrial and logistical environments.
